Definition and Basic Function

A spiral freezer is a specialized type of refrigeration equipment commonly employed in the food industry to freeze large quantities of products in a time-efficient manner. It is identifiable by its characteristic spiral conveyor system which allows for continuous freezing while occupying a minimal footprint. The compact, multi-level design enables the spiral freezer to optimize vertical space, which is particularly beneficial for facilities with limited floor area.

The spiral conveyor belt moves the products through a controlled temperature environment, ensuring that they are frozen quickly and uniformly. This not only maintains the quality and texture of the food items but also increases production efficiency. Spiral freezers are regarded as an essential tool in the food processing sector, being adept at handling a wide range of products from prepared meals to delicate bakery items, poultry, and seafood.

In terms of industry application, the adaptability and reliable performance of spiral freezers make them indispensable for businesses aiming to elevate their freezing processes. These systems are engineered to meet the rigorous demands of high-volume operations while reducing energy consumption, making them a cost-effective and environmentally responsible choice for companies focused on sustainable practices.

Types of Spiral Freezers

Two common types of spiral freezers include cryogenic and mechanical refrigeration systems. Cryogenic freezers utilize liquid gases such as nitrogen or carbon dioxide to achieve rapid cooling, while mechanical systems cool air mechanically and circulate it to maintain low temperatures. The choice between these methods depends on factors like desired freezing speed and product handling requirements.

Applications in Different Industries

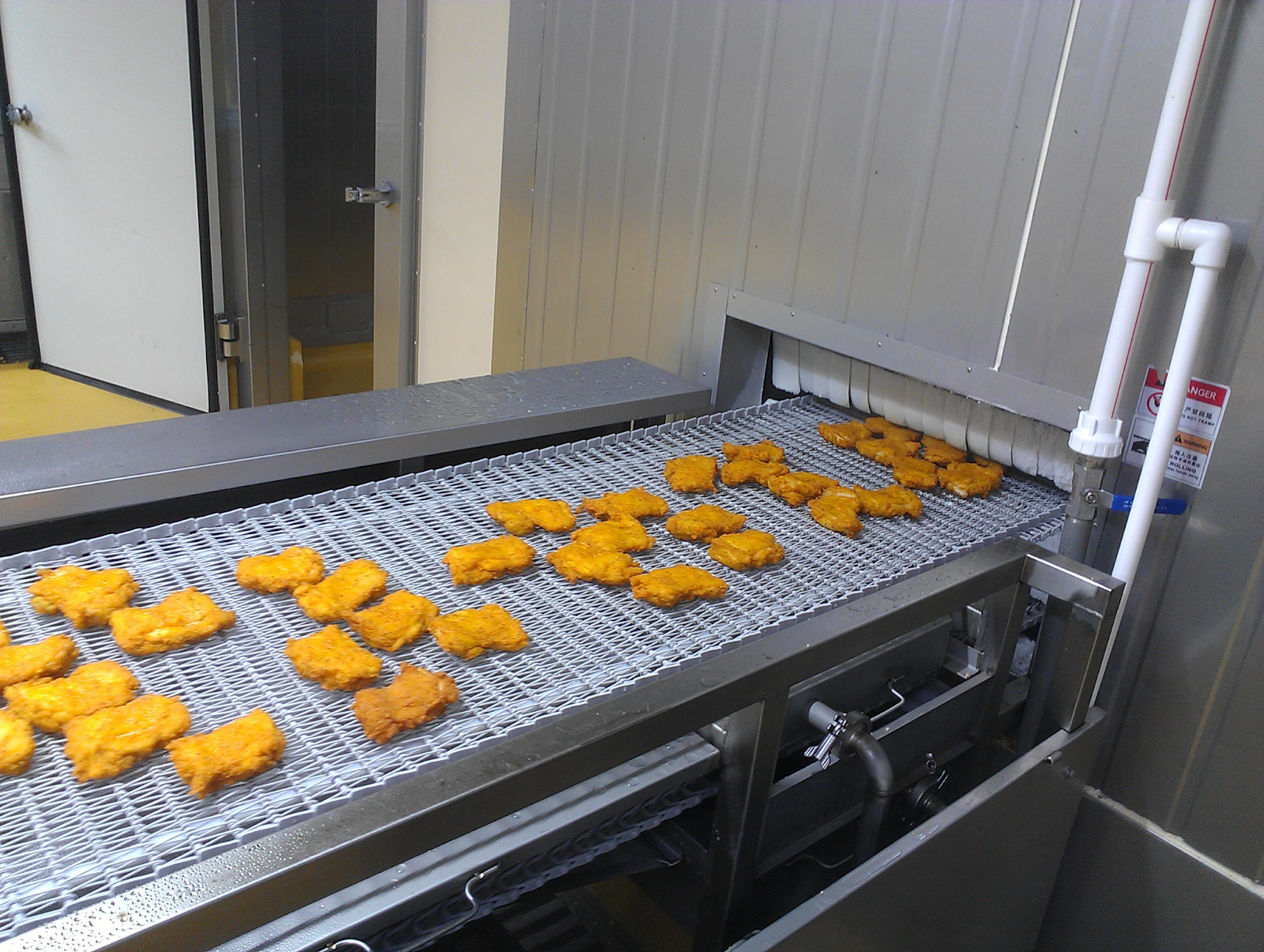

Spiral freezers are employed across various industries for their freezing efficiency. The food industry greatly benefits from their use, where maintaining product quality during freezing is paramount. They are ideal for freezing baked goods, meats, ready meals, and dairy products. Spiral freezers cater not just to food safety but also to enhancing productivity in high-volume food production environments.

Advantages of Spiral Freezers

Spiral freezers offer several key benefits to food processing industries, ranging from economical operation to consistent food quality. They are recognized for their energy-efficient design and their ability to maintain high standards of hygiene and safety.

Efficiency and Economy

Spiral freezers are designed to freeze large quantities of food quickly and uniformly, which translates to significant energy savings over time. By employing a compact spiral conveyor belt system, they deliver a continuous freezing process, leading to improved overall plant efficiency. The 360-degree freezing method ensures that every surface of the product is evenly frozen, minimizing energy waste.

Quality and Reliability

One of the primary advantages of spiral freezers is the quality of the freeze they provide. By freezing products rapidly, these freezers help preserve the flavor, texture, and moisture of the products, which translates into superior taste and appearance. Advanced Food Equipment, Square also highlights the versatility of spiral freezers in handling various food products, ensuring reliable performance and adaptability in different processing scenarios.

Hygienic Design and Safety

Spiral freezers are designed with hygiene and safety in mind. Their design limits the buildup of ice, allowing for continuous operation and easy cleaning processes. This feature is crucial for complying with food safety standards and ensuring products are free from contamination. Furthermore, as detailed by Refrigerated Frozen Food, the enclosed freezing area and controlled belt speed contribute to these freezers’ rigorous safety and hygiene standards.

Design Features and Components

In the realm of rapid freezing technology, spiral freezers stand out due to their specialized features and components which optimize space utilization, enhance cooling efficiency, and incorporate advanced design innovations.

Conveyor System and Cooling Mechanics

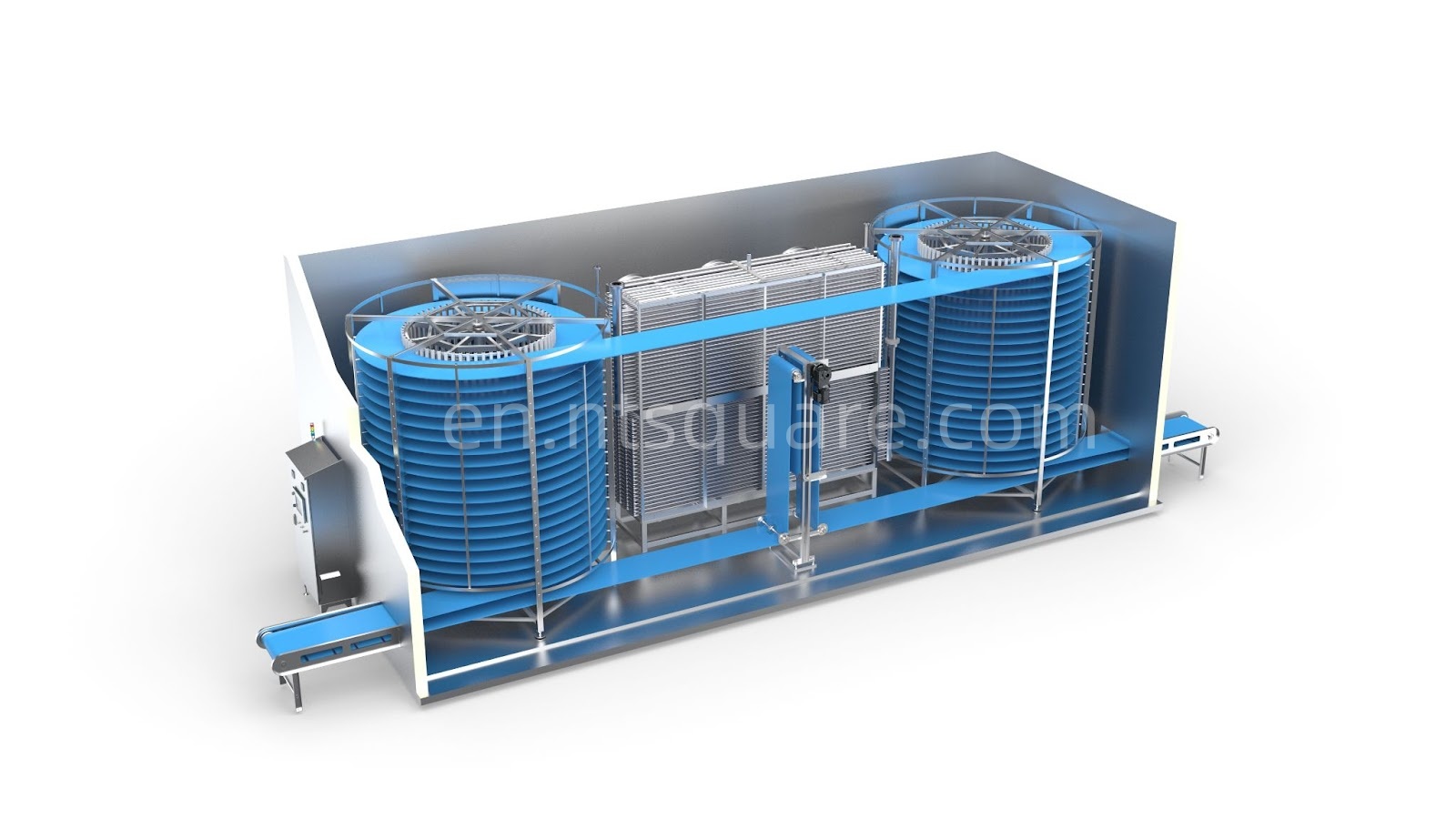

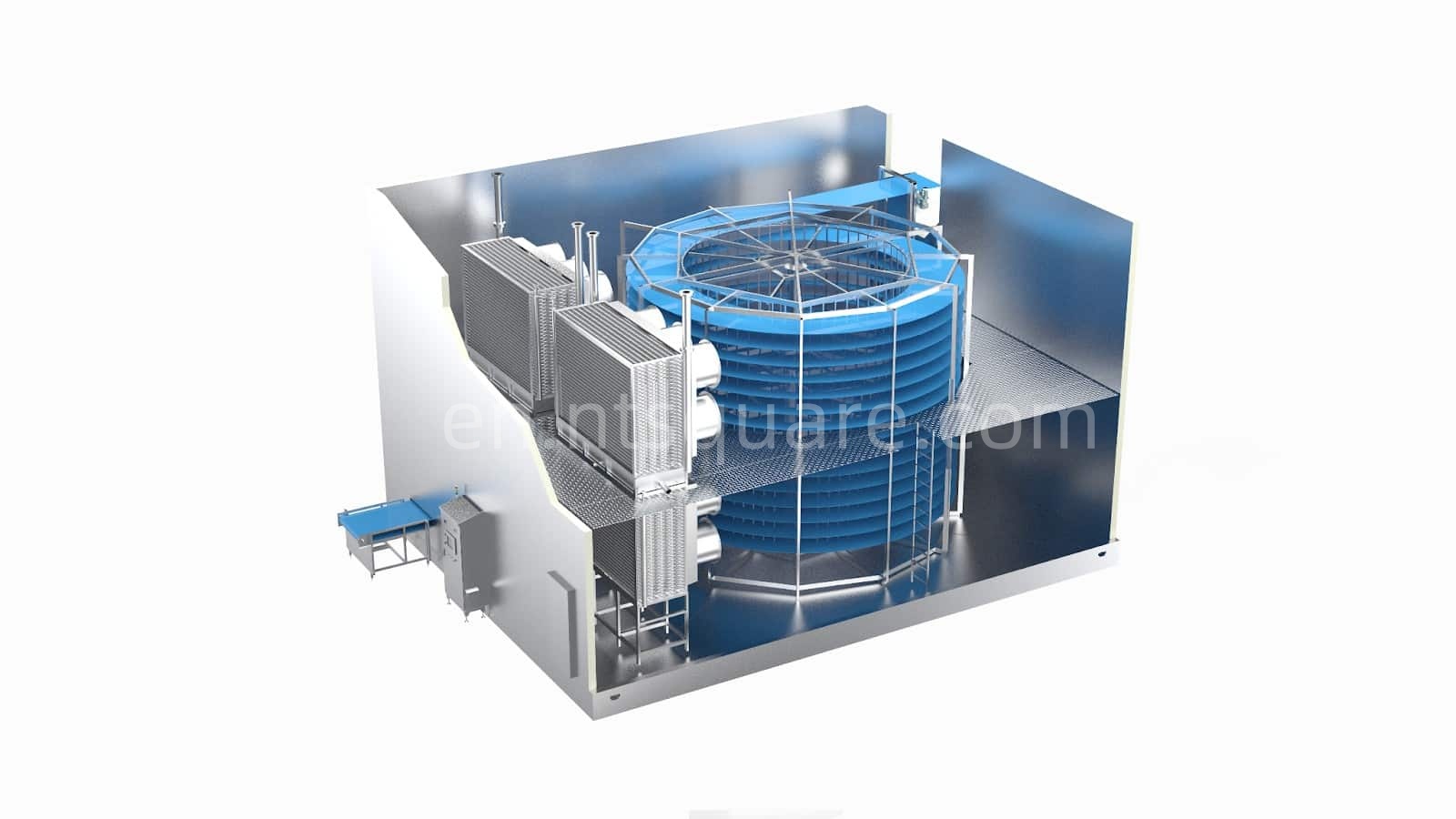

At the heart of a spiral freezer is its conveyor system, designed to move products through a helical pathway allowing for continuous freezing. The spiral conveyor works in tandem with refrigeration units that provide consistent cooling to ensure that every product surface is evenly frozen. The belt speed can be adjusted to control the freezing process duration, directly affecting the final product’s temperature.

Innovations in Spiral Freezer Design

The latest innovations in spiral freezer design include advancements such as improved airflow patterns for more effective freezing and reduced energy consumption. Furthermore, modern spiral freezers often incorporate features like telescopic belting, allowing for easy maintenance and cleaning. These developments not only enhance the functionality of the freezer but also contribute to overall operational efficiency and food safety standards.

Operational Aspects

Freezing Capacity and Throughput

Spiral freezers are designed to maximize freezing capacity within a compact footprint. They achieve this by using a spiral conveyor system that transports food products through a controlled cooling process. The freezer’s ability to cool products rapidly translates into high-throughput production, enabling businesses to freeze large quantities efficiently. These systems are particularly well suited to processing items such as meat, poultry, pastries, and other prepared foods, ensuring consistent freezing throughout the production cycle.

Cleaning and Maintenance Procedures

The design of spiral freezers facilitates easy cleaning and maintenance. Their continuous conveyor design typically allows for an automatic cleaning-in-place (CIP) system to be implemented, which helps maintain hygiene and reduces downtime. Regular maintenance is crucial to prevent ice buildup, which can impede the freezer’s performance. Effective cleaning procedures contribute to the longevity of the freezer and maintain consistent production quality.

Optimizing for Product Quality and Texture

Spiral freezers are adept at maintaining the quality and texture of the food products being frozen. By employing a 360-degree air freezing technique, these freezers ensure an even distribution of cold air across the product’s surface. This prevents the formation of ice crystals that can damage the structure of the product, thus preserving its texture and taste. Adjustments can be made to the speed of the conveyor belt and the temperature within the freezer to accommodate different types of products, making it possible to tailor the freezing process to the specific needs of each item.

Types of Products Suitable for Spiral Freezing

Spiral freezers are versatile machines adept at preserving the quality of various foods by freezing them quickly and efficiently. Their design allows for high-volume processing, making them an excellent option for a multitude of products across different food categories.

Poultry, Meat, and Seafood

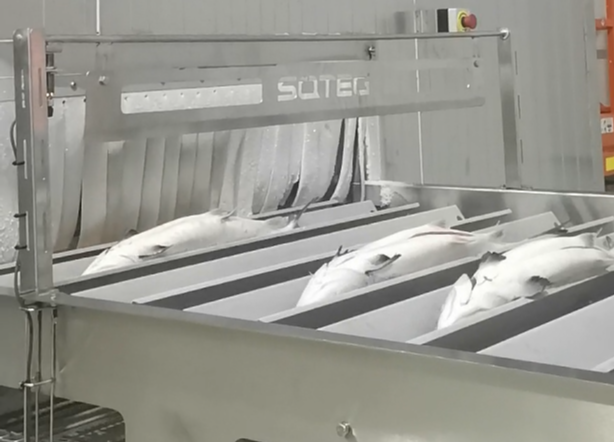

This method excels in maintaining the moisture, texture, and flavor of these protein-rich foods. Processors often use a spiral freezer to cool large batches of products like chicken breasts, pork cuts, and fish fillets to ensure a rapid freeze that helps in inhibiting bacterial growth and extending shelf life.

Fruits, Vegetables, and Ready Meals

For fruits and vegetables, spiral freezing is beneficial as it preserves their nutritional value, color, and taste. Ready meals, which often include a variety of ingredients, can also be effectively frozen, maintaining the integrity and quality of the dish. Spiral freezing ensures that individually quick frozen (IQF) fruits and vegetables retain their individual characteristics, and ready meals like lasagna or stir-fry mixes are kept in top condition for future consumption.

Bakery Products and Specialty Foods

They are especially well-suited for pastries, bread, and other delicate products that benefit from consistent freezing. This method helps in preserving the freshness and texture of bakery goods, which is crucial for maintaining customer satisfaction. Specialty foods such as artisan cheese and crafted desserts also retain their unique qualities when frozen in a spiral freezer, making it a preferred choice for producers of gourmet and niche market food items.

Choosing the Right Spiral Freezer

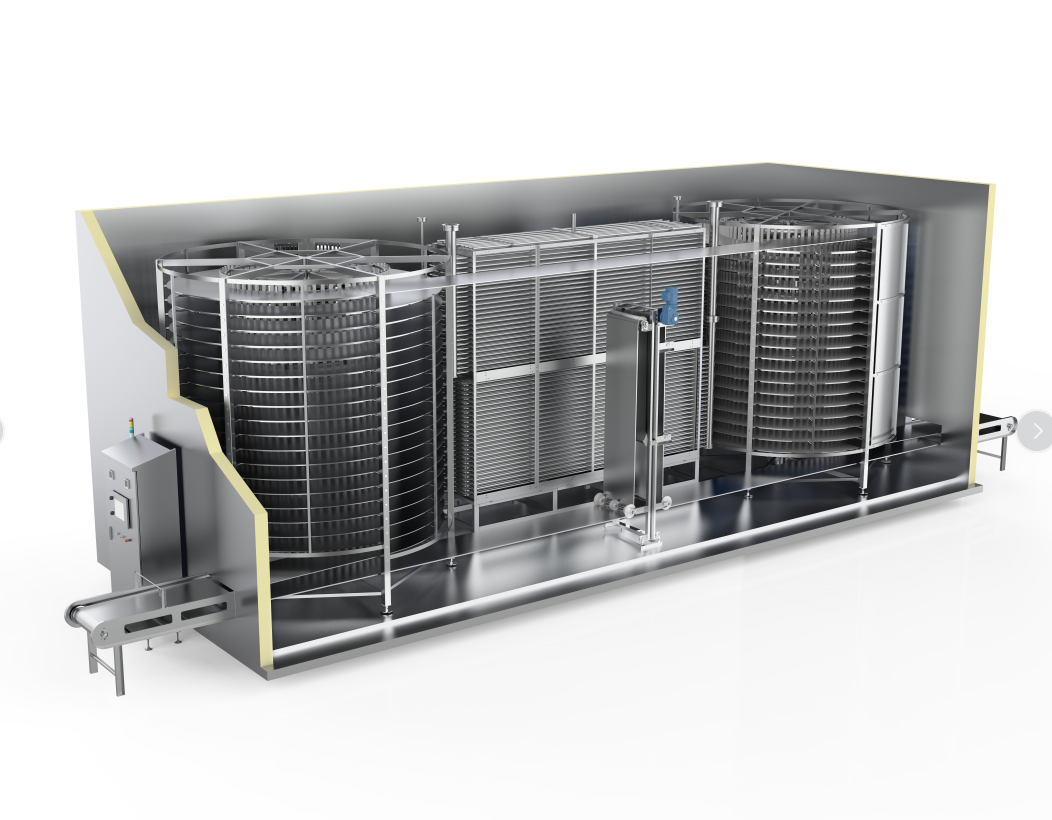

Selecting a suitable spiral freezer is crucial for meeting production goals and maintaining quality.

Assessing Production Requirements

Any organization must accurately determine their production capacity needs. This includes understanding the quantity (LBS/HR) of product to be frozen and the duration of production shifts. Attention must be given to both the entry and exit temperatures of the product in the spiral freezing process. It’s essential to ensure that the chosen freezer can handle the desired volume without compromising product quality.

Consulting with Manufacturers and Suppliers

It is advisable to engage with recognized spiral freezer manufacturers and suppliers, to gain insights into the latest technologies and receive professional advice tailored to your specific production needs. They can offer support and discuss the nuances of different systems to match your operational flow.

Customization Options

Some manufacturers provide customized solutions for spiral freezers—allowing for adjustments in size, shape, and refrigeration methods to optimize workflow and efficiency. It’s important to note how such customizations can aid in maintaining product freshness, texture, and flavor, ensuring a high-quality end product.

Technological Innovations

Recent advancements in spiral freezer technology have led to remarkable enhancements in efficiency and food quality preservation. These innovations not only improve freezing processes but also provide significant energy savings and sustainability benefits.

Advanced Refrigeration Technologies

Advanced refrigeration technologies in spiral freezers now include systems capable of reaching temperatures as low as -100°C. This significant achievement ensures rapid freezing, which is essential for maintaining the integrity of food products. One example is the introduction of cryogenic freezing systems, which use liquid nitrogen or carbon dioxide to achieve quick freezing and reduce ice crystal formation, preserving the original texture and flavor of food items.

Smart Controls and Automation

Spiral freezers with smart controls offer increased automation, leading to precise temperature regulation and better product handling. These systems utilize sensors and monitoring devices to automate the freezing process, ensuring consistent quality and reducing the need for manual intervention. Automation technologies can also track and adjust freezing parameters in real-time, optimizing the process for different food products.

Sustainability and Energy Savings

Sustainability and energy savings are significant focus areas in the development of modern spiral freezers. Manufacturers are now incorporating eco-friendly refrigerants to minimize environmental impact. Furthermore, spiral freezers are being designed to consume less energy through improved insulation and more efficient heat exchange systems. These changes not only reduce the carbon footprint of the freezing process but also cut operational costs for food processing facilities.

Installation and After-Sales Support

Setup and Commissioning

The installation of a spiral freezer is a critical step that sets the foundation for its operational effectiveness. Expert technicians should carry out the installation process to ensure that all components are correctly set up and comply with safety standards. During commissioning, these specialists meticulously test all functions to confirm the freezer’s readiness for production.

Training and Technical Support

Training is essential to empower the operators and maintenance personnel with the knowledge required to run and service the spiral freezer efficiently. Additionally, responsive and skilled technical support must be available to resolve any operational challenges swiftly, ensuring minimal downtime and maintaining productivity levels.

Warranty and Parts Replacements

A robust warranty typically accompanies a quality spiral freezer, covering essential parts and workmanship, thereby safeguarding the customer’s investment. When parts replacement is needed, the availability of genuine parts is crucial to maintain optimal operation and extend the freezer’s lifespan. Prompt after-sales service for parts replacement is essential for uninterrupted freezer performance.

Contact and Professional Advice

When considering the implementation of a spiral freezer in an industrial setting, seeking professional advice is crucial. Below are strategies for getting in touch with the right experts and ensuring one receives the most knowledgeable guidance.

Direct Inquiries:

• Contact Us: Organizations interested in spiral freezer technology should utilize the ‘contact us’ feature found on most manufacturers’ websites. This allows for direct communication with a sales representative or a technical specialist who can provide detailed product knowledge. The provided connections often include phone numbers, email addresses, or even live chat options.

Consultation Services:

• Professional Advice: Speaking with an expert is invaluable. They can discuss specific requirements like production capacity, space constraints, and the desired freezing technique. Companies like Square offer consultations to discuss customization according to one’s needs.

Technical Specifications:

• Understand Your Needs: Before contacting a specialist, it’s important to know the basics of one’s operational demands, such as production capacity (LBS/HR) or the product temperatures pre and post-freezing. These details will help the advisor provide the most accurate and useful information.

Anymore question? Don’t wait. Contact us for custom design solutions and we can provide professional and prompt service.
